The sidebar page¶

The integration adds Tapo Vacuum to the Home Assistant sidebar: one page with everything it knows, so you do not have to build a dashboard to get going. The bundled card is still there for your own dashboards; the page is the full-size version.

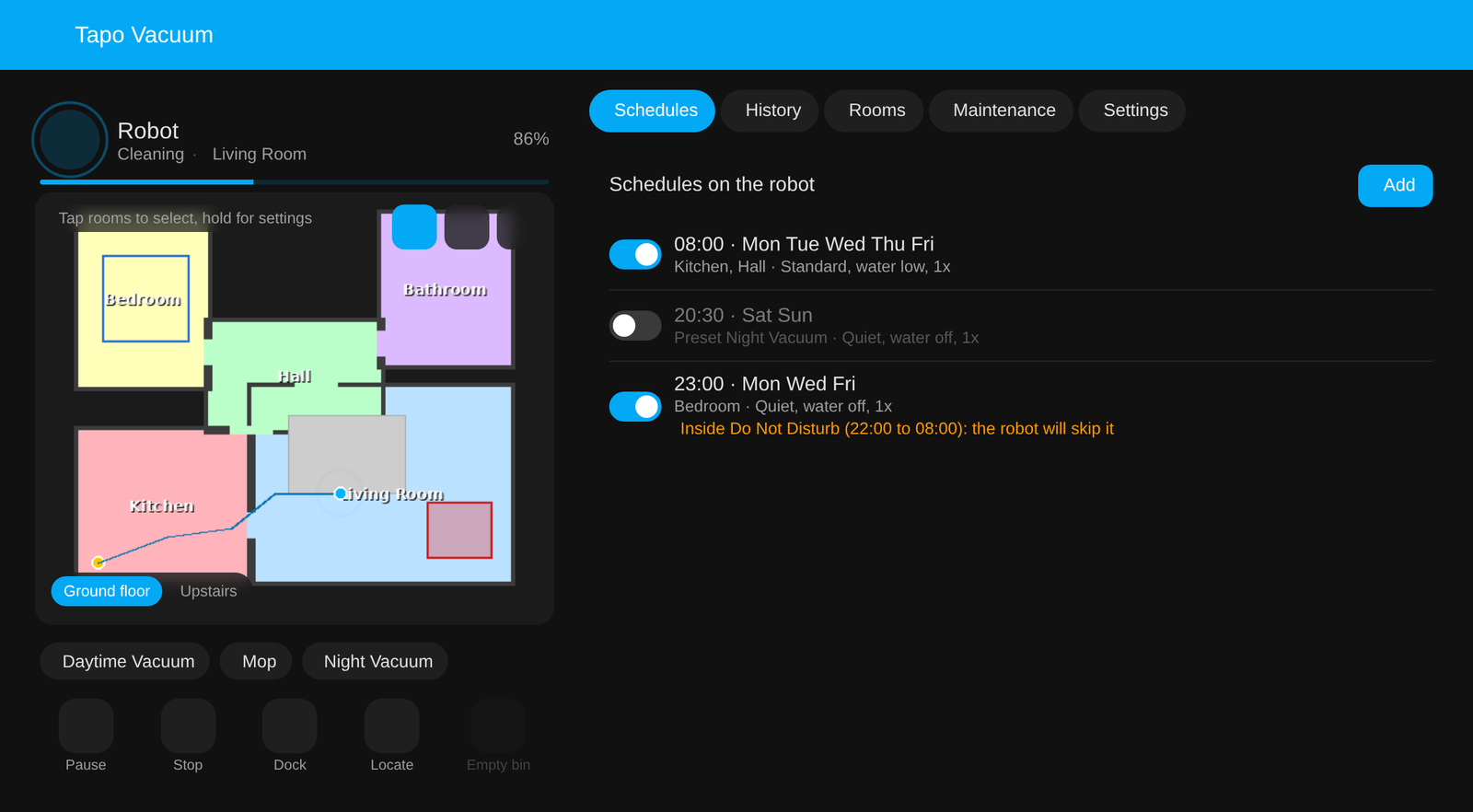

The Tapo Vacuum sidebar page

Mock-up with a made-up house and made-up runs.

What is on it¶

Map¶

The bundled card, full size: tap rooms, draw zones, floors, presets, controls, the status panel with the last clean map, and the go-to tool (tap a point, press Go).

Schedules¶

The robot's own schedules, the ones it runs with or without the app. Add, edit, enable or disable and delete them with a form (start time, days, rooms or a preset or the whole house, suction, water, passes). Nothing is stored in Home Assistant; it all goes to the robot through add_schedule, set_schedule and remove_schedule.

A schedule whose start time falls inside the robot's Do Not Disturb window is flagged in the list and in the editor, because the robot keeps it but never runs it (verified on an RV30 Max Plus; the Tapo app shows the same warning). Saving or enabling one asks first. The Do Not Disturb times are editable on the Settings tab.

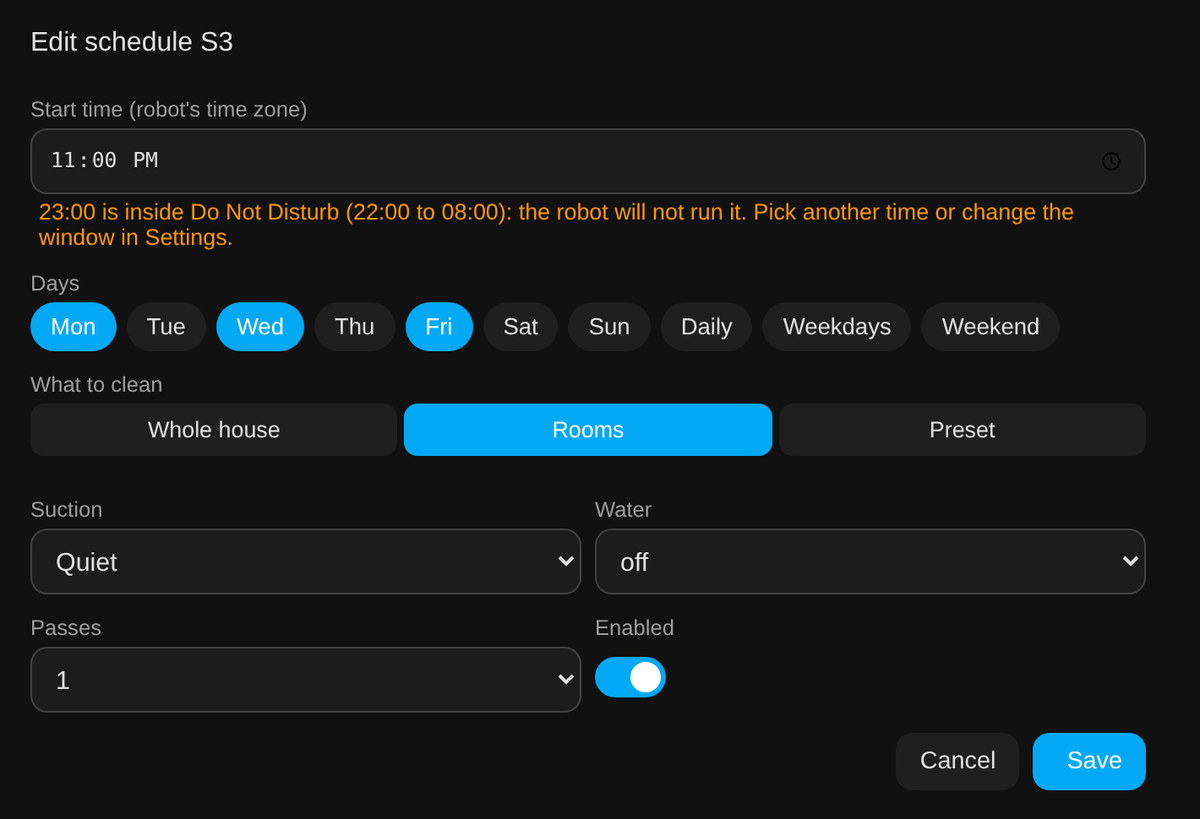

Schedule editor warning about Do Not Disturb

Planner¶

Keeps each room within a target such as "every 2 days" and cleans the due rooms when nobody is home, inside your time window, with motion sensors keeping it out of rooms in use. It starts off and in preview mode. Everything about it is on the planner page.

History¶

Lifetime totals, cleans per day for the last 30 days, minutes per week for the last 8 weeks, and the recent runs with how they were started.

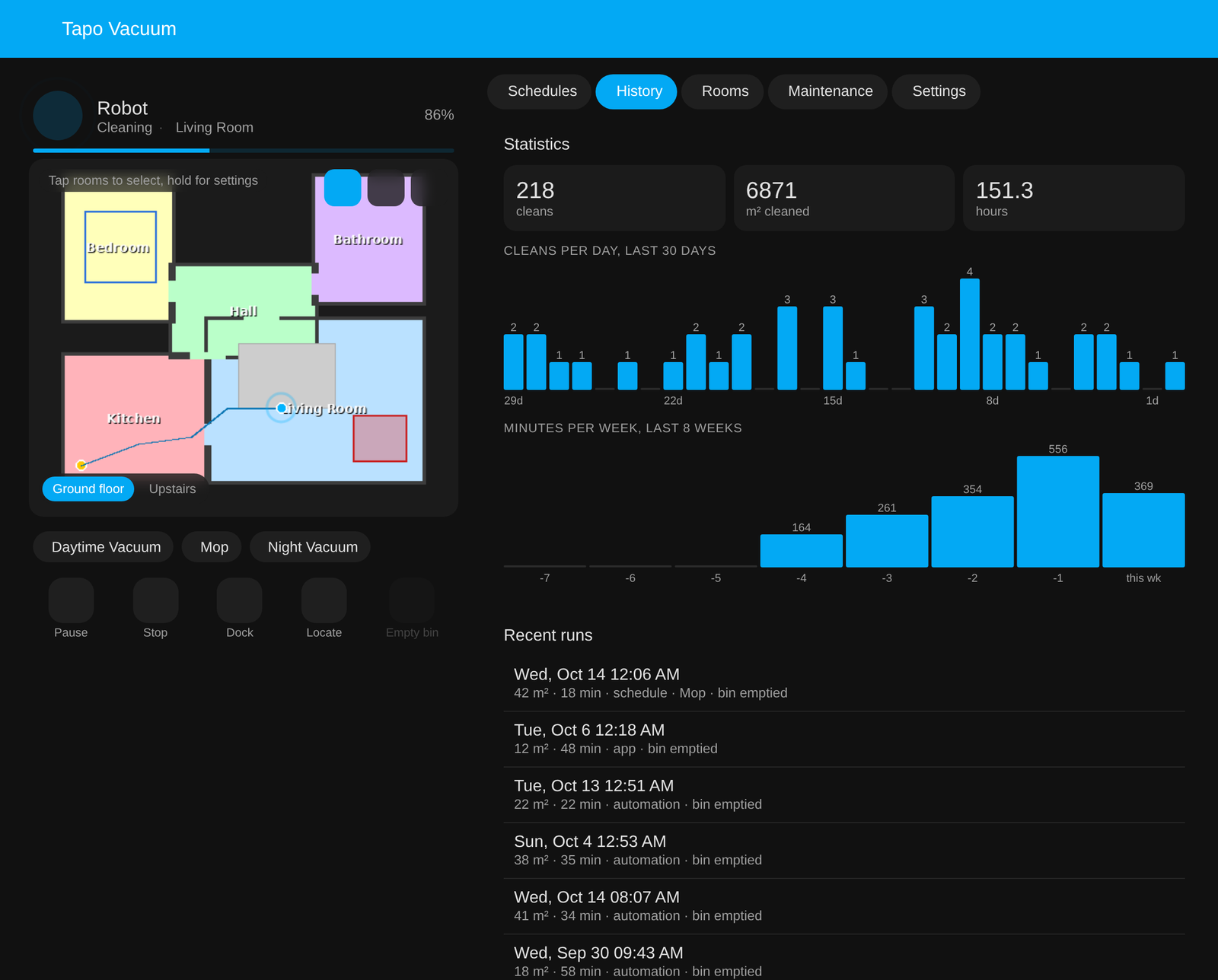

History and statistics

Rooms¶

Each room with how recently it was cleaned and how much of it the robot covered, with a one-tap clean button.

Drive¶

The app's remote control. Take control and the robot drives off the dock; hold an arrow button, or an arrow key, and it moves until you let go. Stop, vacuum while driving, spot clean where it stands, locate, send it home. The map on the left follows it. Verified on an RV30 Max Plus. If yours misbehaves, press Stop or Send home.

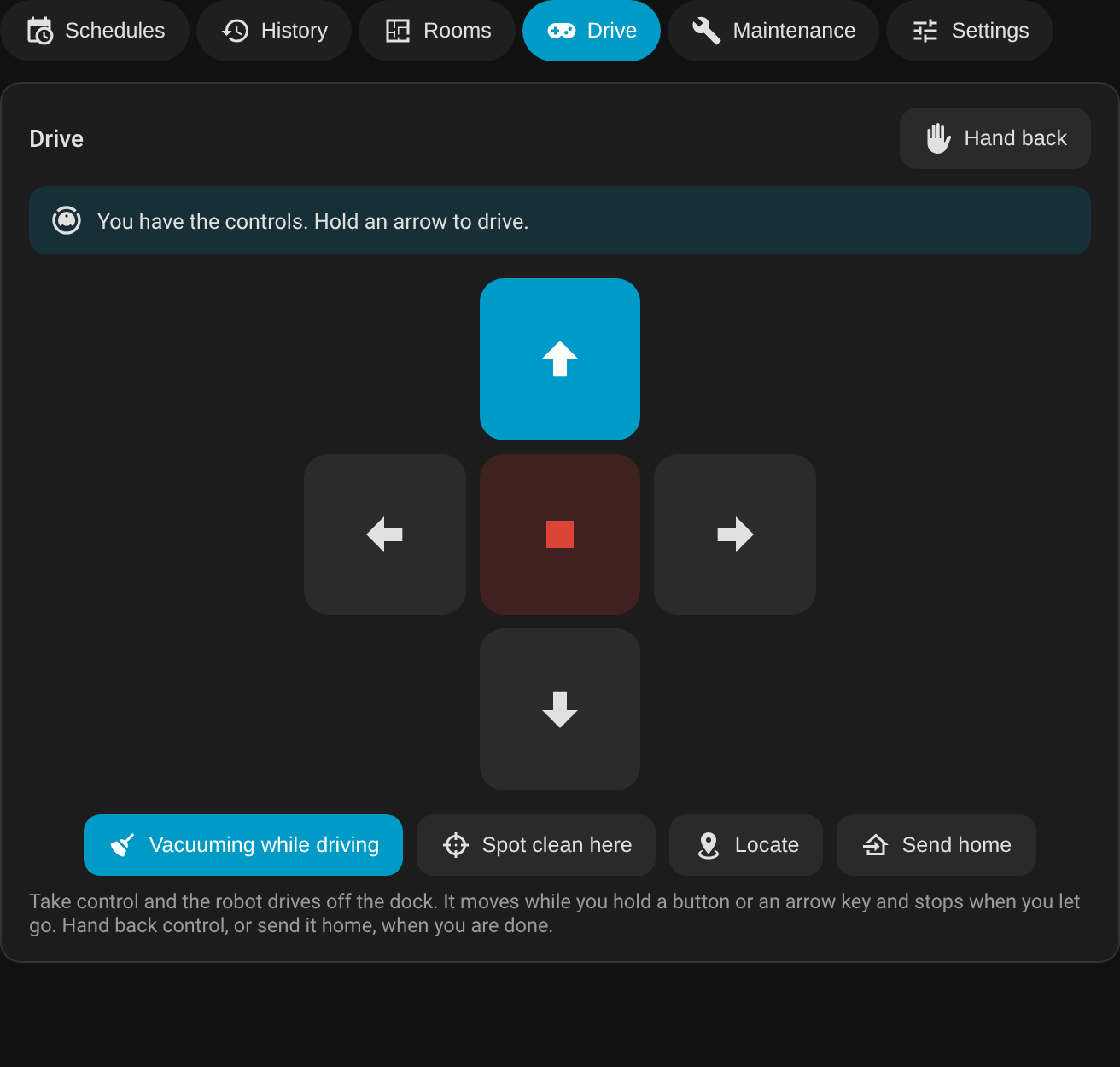

The Drive tab

Edit map¶

Draw on the live map and save the result to the robot - no app. Pick a tool (No-go, Wall or Furniture), draw on the map, and the change is held locally with Undo until you press Save to robot; Discard throws the lot away. Select an item to move or delete it. The robot must be docked and idle to save. Carpets and room names are drawn for context but are view-only for now. Behind the scenes this is the robot's own editing API (setAreaInfo / setFurnitureInfo), the same one the Tapo app uses.

Backups¶

Every map backup Home Assistant holds, as a grid of thumbnails. Tap one to see it full size, or press Restore to put it back on the robot (docked and idle). Fetch from cloud downloads your latest TP-Link backups into config/tapo_rv30/map_backups/<robot> without leaving the page. Each backup is pictured from the robot's own snapshot or the saved map drawn like the live map, and its .bkmap is decoded to show the explored floor area, dock and room count. See map backup and recovery for the detail.

Maintenance¶

Consumable life bars (amber under 30 percent, red under 10), Empty Bin, resets, and the Omni dock actions where the dock has them.

Settings¶

Every switch, select, number and time the robot exposes, Do Not Disturb included.

With more than one robot, each gets a tab in the header.

Turning it off¶

Settings, Devices and services, Tapo Robot Vacuum, Configure, untick "Show the Tapo Vacuum page in the sidebar". It disappears immediately and comes back the same way. With several robots the page stays while any of them has it on.

Compared with a dashboard¶

The page is the quickest way to everything, and most people will not need a dashboard at all. If you want your own layout, the dashboard strategy builds one from a single line, and the card drops into any dashboard you already have.
